Guard Duty Dedicated Control Panel (For GJK-8)

The guard duty dedicated control panel is a visual customized product. The appearance coincides with the shape of the intersection. One-key button is set according to different function needs. Non-professional technicians can control the traffic lights of the intersection through the product to rapidly complete tasks of guard and emergency.

Product Specs :

Guard Duty Dedicated Control Panel (For GJK-8)

Product Overview

The guard duty dedicated control panel is a visual customized product. The appearance coincides with the shape of the intersection. One-key button is set according to different function needs. Non-professional technicians can control the traffic lights of the intersection through the product to rapidly complete tasks of guard and emergency.

Features

One key realizes the state that all the traffic lights of the direction are green and the traffic lights of other entrance directions and the pedestrian lights are red at the same time;

One key realizes the states that all the traffic lights keep red, yellow flashing( no display for the pedestrian lights) and turning off;

One key realizes retention and conversion of operation plans at the intersection;

When starting the panel, all the equipment including the countdown timers and the screens of waiting for driving are in closed state ( need the equipment supporting) ;

Stainless steel button.

Model Number

GJK-8-AN02

Technical Parameters

Communication Mode

UART Interface

Working Power Supply

DC5V/1A

Lightning Surge Impact Protection (Power Supply)

5000A(8/20μs)

Working Temperature

-20~+70℃

Storage Temperature

-40~+85℃

Working Humidity

<95%@40℃, No Condensation

Outline Dimension

144*124*20mm

Housing Material

ABS Engineering Plastics, Laser Engraving Logo ( Surface Material)

Overall Weight

0.2KG

Installation Method

Fixed Installation on the Inside of the Cabinet Door

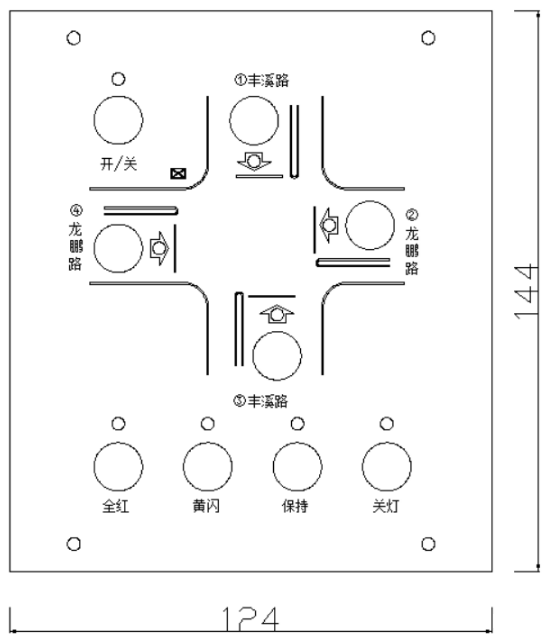

Dimensions
